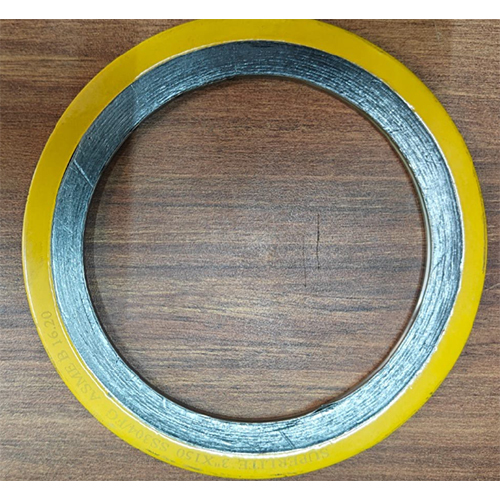

Spiral Wound Gaskets

Get a Price/Quote

MOQ : 10 Pieces

Spiral Wound Gaskets Specification

Temperature Resistance
Up to 550C (depends on filler and metal)

Medium
Suitable for Oils, Fuels, Solvents, Chemicals, Steam, and Acidic/Alkaline media

Gasket Coefficient
0.35 to 0.50 (typical)

Working Temperature
-200C to +550C

Pressure Resistance
Up to 250 bar (3600 psi), higher range available based on request

Vaccum Range
Full vacuum 0.001 mbar

Standard
ASME B16.20, DIN, JIS, IS, BS, API, Custom

Hardness
90-240 HB (depending on metal strip)

Material
Spiral wound with Stainless Steel strip and Graphite/PTFE filler

Shape
Round (standard), Oval/Rectangular on request

Outer Ring
Mild Steel, SS304, SS316, Carbon Steel

Inner Ring
SS304, SS316, Carbon Steel, PTFE lined or customized

Size
15 mm to 2000 mm (custom sizes on request)

Application
Petrochemical, Refinery, Power Plant, Oil & Gas, Chemical Industries, Steam, Water and Gas pipelines, Flanges

Thickness
3.2 mm, 4.5 mm, 6.4 mm (customized options available)

Density
1.6 - 1.9 g/cm3 (Graphite Filler)

Recovery Rate
8% to 15% (typical)

Fire Safety
Fire safe design available (API 607/ISO 10497 compliance)

Manufacturing Tolerance
0.5 mm for thickness, 1.5 mm for diameter

Customization
Thickness, material, size, rings, and filler on request

Color Code Standards
Striped with color per ASME, e.g., Yellow for SS304+Graphite

Durometer Hardness (Shore A)
70-95 (Filler dependent)

Compression Rate
12% to 15% (typical)

Leakage Rate
0.1 mg/sm (as per EN13555)

Facing Material
Flexible Graphite, PTFE, or Ceramic on request

Flange Compatibility
Raised Face (RF), Flat Face (FF), Tongue & Groove (T&G), Male-Female (M&F) flanges

Corrosion Resistance
Excellent (based on selected material)

Spiral Wound Gaskets Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

About Spiral Wound Gaskets

Experience the superlative engineering of Spiral Wound Gaskets, now on Sale with a notable Price Cut! These laureate gaskets boast spectacular sealing properties, meticulously color-coded per ASME standards for easy identification. Engineered with a selection of premium materials-ranging from Stainless Steel strips and Graphite/PTFE fillers-these gaskets ensure exceptional corrosion resistance, fire safety (API 607 compliant), and tight leakage control (0.1 mg/sm). Suitable for diverse flange types, thickness, shapes, and sizes (15mm-2000mm), these gaskets are perfect for refining, power, oil & gas, and chemical sectors. Try Now and customize to your requirement!

Versatile Applications Across Industries

Spiral Wound Gaskets are extensively used for creating reliable, leak-proof seals in various sectors such as petrochemical plants, refineries, power stations, oil & gas, and chemical industries. These gaskets are designed for installation on pipelines, process equipment, and flanges, ensuring optimal performance even in high-pressure and temperature environments. Their versatility and adaptability to a wide range of hazardous and non-hazardous media make them indispensable in rigorous industrial settings.

Sample Availability and Supply Policy

Samples of Spiral Wound Gaskets are available upon Purchase Order at a special Sale price for qualifying buyers. Our sample policy ensures prospective customers can evaluate quality and compatibility before bulk orders. With robust supply ability, we guarantee timely Delivery for domestic and international clients. Whether you are an importer, exporter, distributor, manufacturer, or supplier, rely on us for consistent supply and genuine products tailored to your project needs.

FAQ's of Spiral Wound Gaskets:

Q: How do Spiral Wound Gaskets benefit industrial sealing systems?

A: Spiral Wound Gaskets offer superior sealing performance under extreme temperature and pressure conditions, making them ideal for critical applications in petrochemical, refinery, and power industries. They provide excellent resistance to corrosion and leakage, ensuring operational safety and equipment longevity.

Q: What materials and customization options are available for these gaskets?

A: You can choose from several filler and metal materials, including Graphite, PTFE, Ceramic, Stainless Steel, and more. Customization includes thickness, size, facing material, inner/outer ring, and shape (round, oval, or rectangular) according to your project requirements.

Q: When should these gaskets be used over other gasket types?

A: Spiral Wound Gaskets are recommended for applications involving high pressure, high temperature, or chemical exposure where other gaskets may fail. Their design enables them to recover from thermal cycling and maintain a tight seal even under fluctuating conditions.

Q: Where can these gaskets be installed?

A: They are suitable for Raised Face (RF), Flat Face (FF), Tongue & Groove (T&G), and Male-Female (M&F) flanges, and cater to pipelines, process vessels, and various industrial flanged joints in multiple industries.

Q: What is the process for obtaining a sample or placing an order?

A: To obtain a sample, simply submit a Purchase Order indicating your specifications. Samples are offered at a competitive Sale price, and after evaluation, full orders can be processed swiftly for both domestic and international Delivery.
